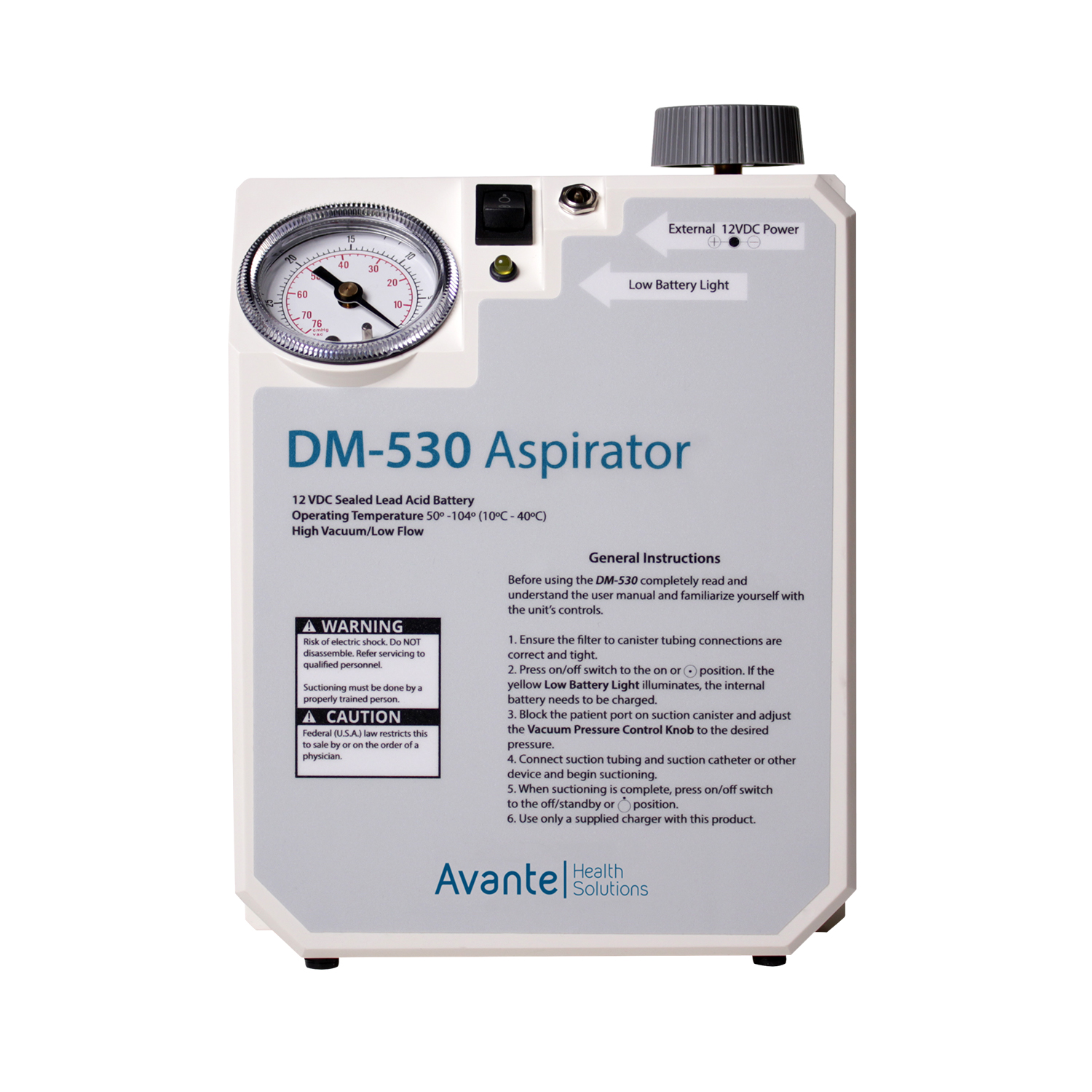

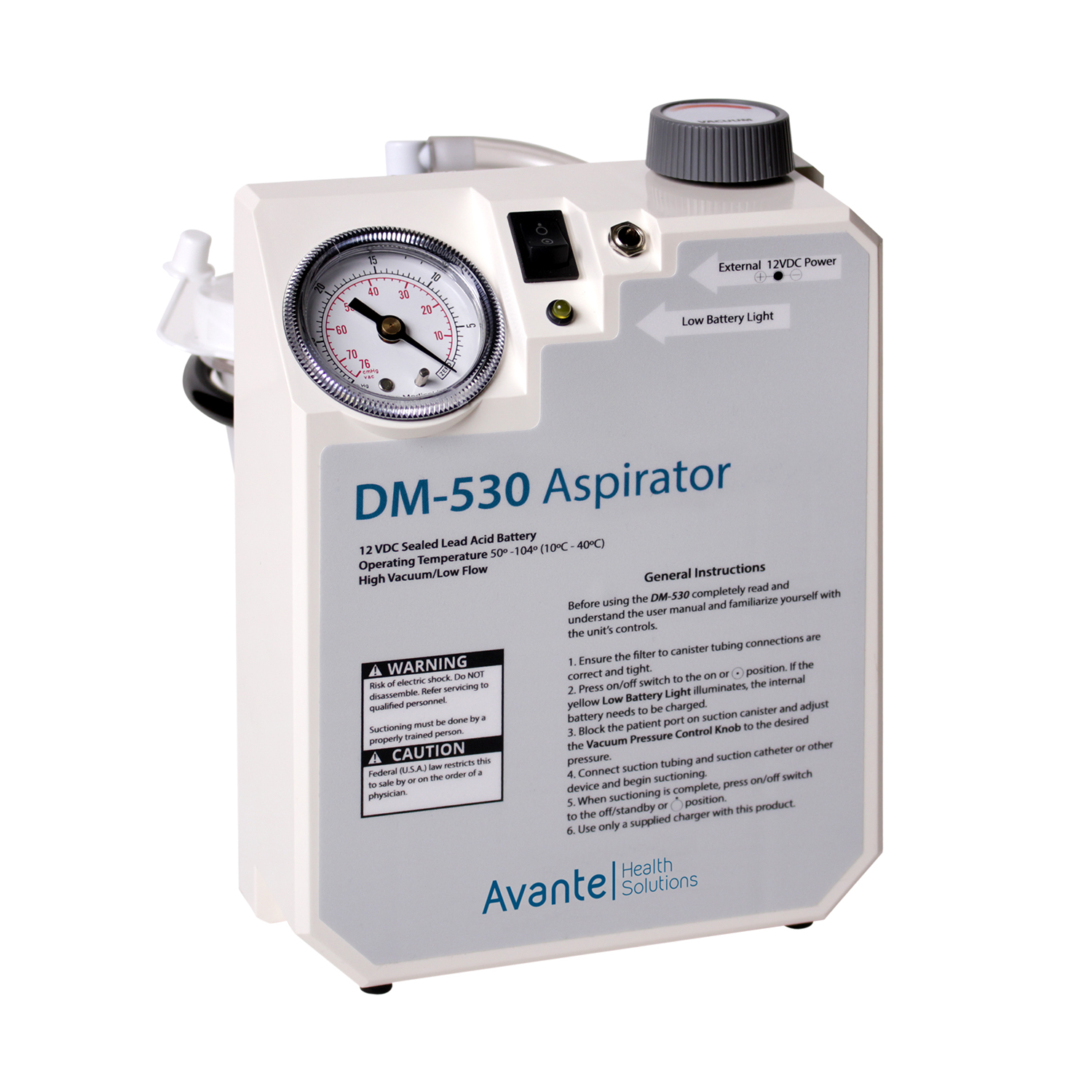

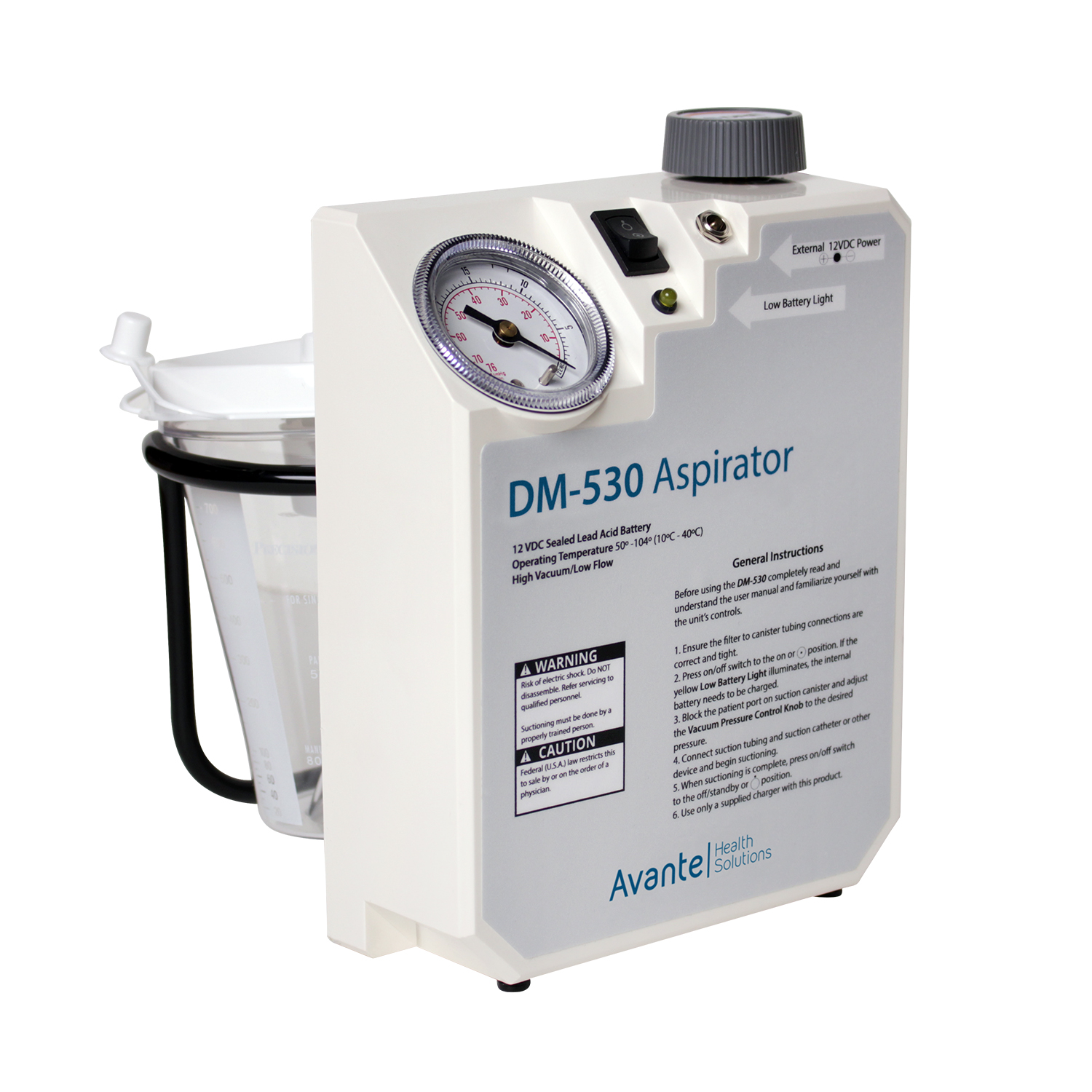

DRE DM-530 Portable Aspirator with Battery Backup

When AC power fails mid-procedure, the DM-530 keeps running on its internal battery for 90 minutes without interruption.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

When AC power fails mid-procedure, the DM-530 keeps running on its internal battery for 90 minutes without interruption. The unit automatically switches between power sources and alerts you with a low battery indicator, so there’s no guesswork about remaining runtime.

The dual pump protection system prevents fluid damage through both a float shut-off mechanism and an inline hydrophobic filter. Worth noting: the unit recharges while stored in its carry bag, keeping everything organized and ready for the next transport. You’ll get consistent 6.5 L/min flow rates across the full vacuum range of 2-19 inHg.

The included carry bag stores the charger, suction tubing, and optional auto DC cord in one compact package. Standard 800 cc canisters mean you won’t need special inventory.

Key Features

  • 1.5 hours of battery runtime with automatic power switching
  • Low battery indicator light for runtime monitoring
  • Rechargeable while stored in included carry bag
  • Standard 800 cc suction canister compatibility
  • Dual pump protection with float shut-off and hydrophobic filter
  • Complete carry bag with charger and tubing storage

Capacity

  • Suction Canister: 800 cc Max Volume

Vacuum and Flow

  • Vacuum Range: 2-19 inHg (51-483 mmHg)
  • Maximum Vacuum: Not to exceed 25 inHg (635 mmHg)
  • Flow: 6.5 ±0.4 l/min @ 11.8 inHg (300 mmHg)

Electrical

  • Aspirator Unit: 12 Volts DC, 1.8 Amps
  • Battery Charger / Power Supply: 100-240 Volts AC, 50-60 Hz, 0.80-0.35 Amps
  • Internal Battery Type: 12 Volt, Sealed Lead Acid

Dimensions & Weight

  • Dimensions (in Carry Bag): Length: 12 in (30 cm); Width: 9.5 in (24 cm); Height: 10 in (25 cm)
  • Weight (with Carry Bag and all Accessories): 9.6 lbs (4.4 kg)
  • Shipping Weight: 11 lbs (5 kg)

Patient Tubing

  • Tubing: 1/4 in. ID Non-Conductive PVC tubing, 6 ft. long, with 1/4 in.-3/8 in. ID female connectors (or equivalent)

Operating & Storage Conditions

  • Operating Temperature Range: 50° – 104°F (10° – 40°C)
  • Storage / Transport Temperature Range: -4 – 104°F (-20 – 40°C)
  • Maximum Humidity: 95% Noncondensing

Warranty

  • Unit: 2-year warranty
  • Battery: 6-month warranty

Materials

  • Cabinet: ABS Plastic

Intended Use

  • Category: Aspirator & Suction
  • Medical Equipment: Aspirators
  • Typical Settings: Hospital, Operating Room, Ambulatory Surgery Center, Plastic Surgery, LTAC, Oral Maxillofacial Surgery, MedSpa, Urgent Care, ICU
