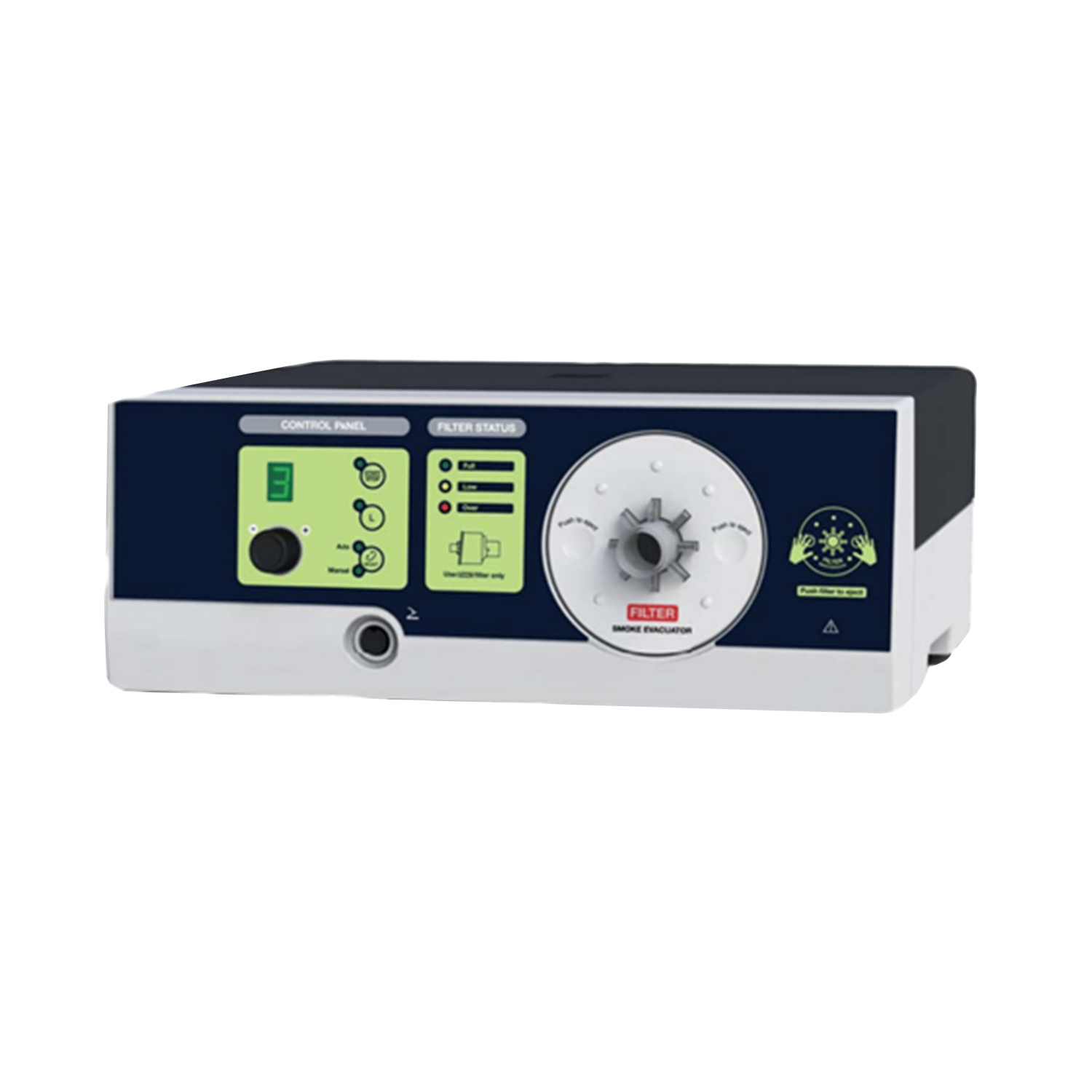

DRE Citadel Smoke Evacuator with Access

The Citadel captures surgical smoke at the source with 1000 LPM flow capacity, maintaining clear visualization during laparoscopic procedures when every.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The Citadel captures surgical smoke at the source with 1000 LPM flow capacity, maintaining clear visualization during laparoscopic procedures when every second of operative time counts. Unlike basic suction systems, it combines ULPA filtration with active carbon to trap 99.999% of particles down to 0.3 microns while eliminating odors that can compromise the sterile field.

Automatic activation means it responds instantly when smoke appears, so your surgical team doesn’t need to manage another device during critical moments. The short version: it runs quietly in the background until needed, then kicks in without breaking workflow. Manual override gives you full control when procedures demand it.

At 370mm wide, it fits into tight OR spaces without competing for real estate with other equipment. The portable design means you can move it between rooms as schedules change, and the compact footprint won’t force you to rearrange your setup.

Key Features

  • High-capacity 1000 LPM suction removes smoke as it forms
  • ULPA filtration with active carbon captures particles and odors
  • Automatic or manual activation adapts to procedure requirements
  • Compact, portable design fits existing OR layouts

Electrical

  • Input Voltage: 230 Vac or 115 Vac
  • Mains Frequency: 50 Hz
  • Electrical Input Power: 800 VA

Performance

  • Max Vacuum Flow Rate: 1000 LPM (35 CFM)
  • Max Static Suction: 250 mbar (83 in H2O)

Filtration

  • Filter Type: ULPA with active carbon
  • Filter Efficiency: 99,999X%
  • Particles Diameter: 0.3 micron

Size

  • Dimensions: 370 mm W x 144 mm H x 319 mm D

Weight

  • Weight: 8.8 lbs

Intended Use

  • Settings: Operating room, ambulatory surgery center, plastic surgery, oral maxillofacial surgery, medical practice, dermatology, urology, OB/GYN
